Windows

• Bunk Windows

  • 2 Venting Motion Windows by Peninsula Glass

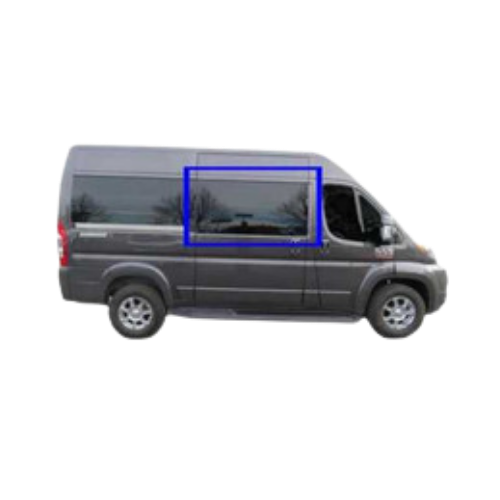

• Sliding Door Window

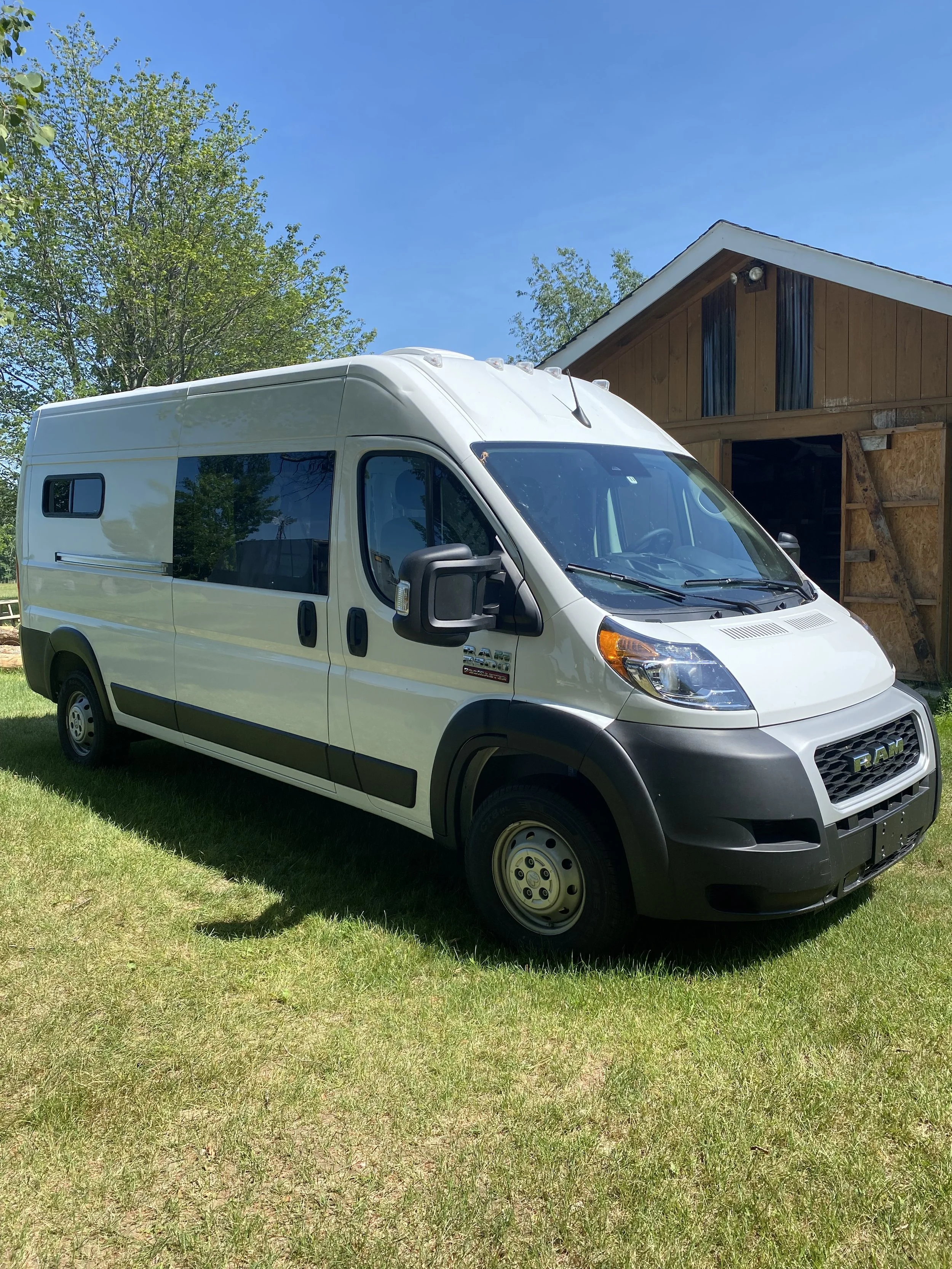

  • Solid window from Van Windows Direct

• Rear Door Windows

  • Factory-installed

• Allow natural light into the van

• Provide visibility of views and surroundings

• Added ventilation through the venting bunk windows

• Reduce blind spots while driving with the sliding door and rear door windows

• Plan window placement around van structures and your interior layout

• Measure twice, cut once

• Apply painter’s tape to the van around the cut line and on the base of the jigsaw to protect the van from scratches and to create a visual guide when cutting

• Thoroughly clean all metal shavings inside the van after cutting to prevent rust

• Paint the newly exposed metal with a rust preventative

• Two people needed to install bunk windows — one person outside holding the window in place while the other secures the flange from inside the van

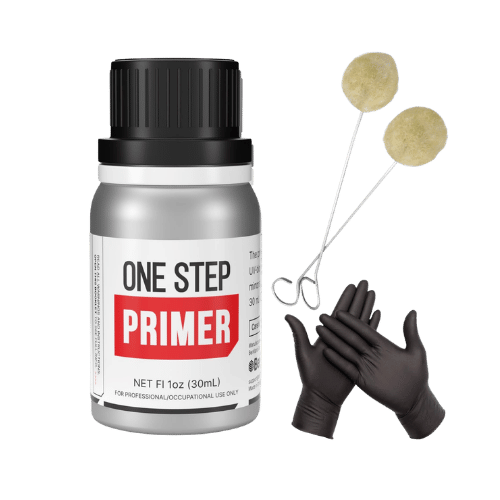

• Use a window primer and P2G Sikaflex adhesive for the solid sliding door window, applying the adhesive in one continuous bead around the entire perimeter

Trade-Offs

• The more holes cut into the van body, the less insulated the interior becomes

• Reduced privacy inside the van

Solutions

• Insulated window covers

• Tinted windows

Note

• The venting bunk windows cannot be left open during rain

Window Styles

• Push-out window – Hinged at the top and opens outward, allowing ventilation even during light rain

• T-style vent window –Lower hinged sections that open outward for ventilation even during light rain

• Solid window – Fixed glass that does not open

• Sliding vent window – One glass panel slides horizontally to allow airflow

Furthermore

• Different window brands may have slightly different glass tint or color variations

• Install windows early in the build so metal shavings are easier to clean and the layout can be designed around them

• Spray the window area with water to test for leaks once it has time to dry

• Motion Windows (RVWindows.com)

• Artic Tern (Tern Overland)

• Van Windows Direct (VWD)

• AM Auto (AMA)

*Avoid C.R.Lawrence (CRL)

I’m happy with my windows and their placement, but for a future build I would strongly consider Arctic Tern windows. I wasn’t aware of these windows when I built my van, but after seeing and using them in person, I’ve been very impressed.

They include built-in screens and shades, thicker acrylic for improved insulation, a nice tint, and a push-out design that can remain open during rain. Another advantage is that window sizes can be customized to fit your layout.
